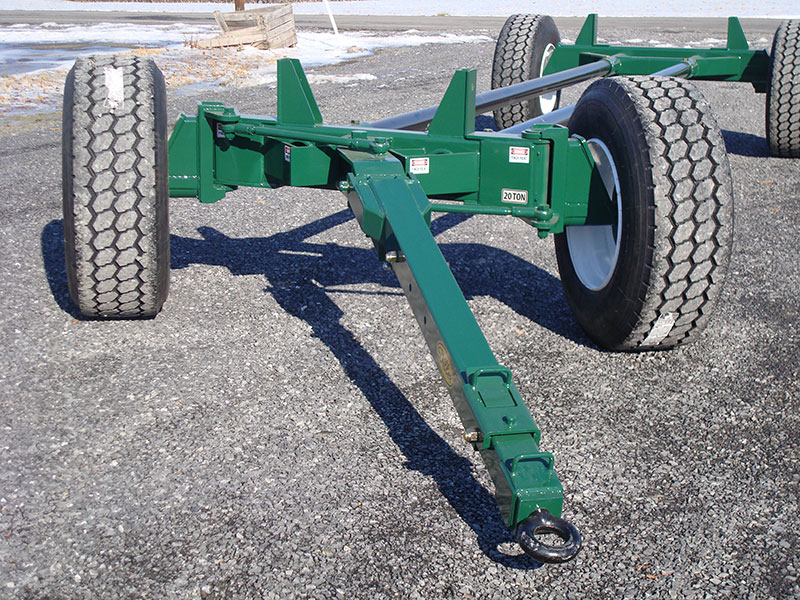

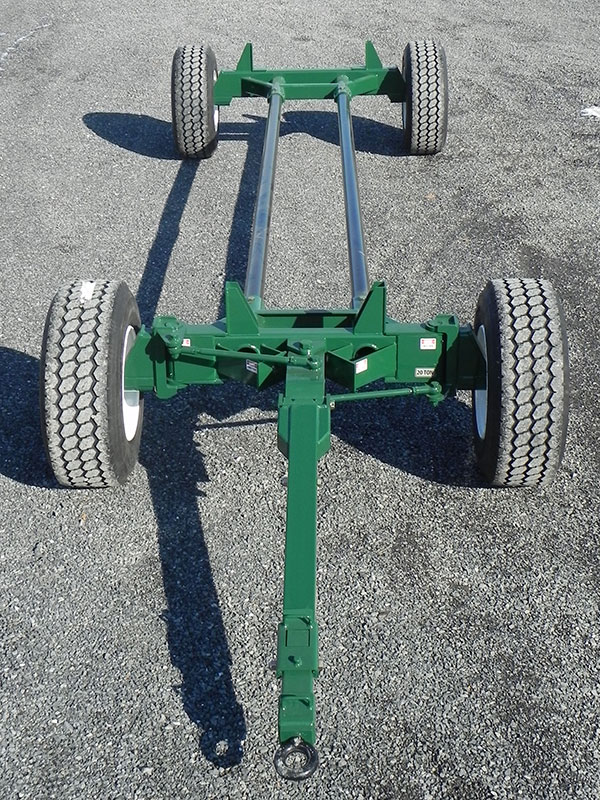

Heavy Duty Wagon Running Gear

Standard Features

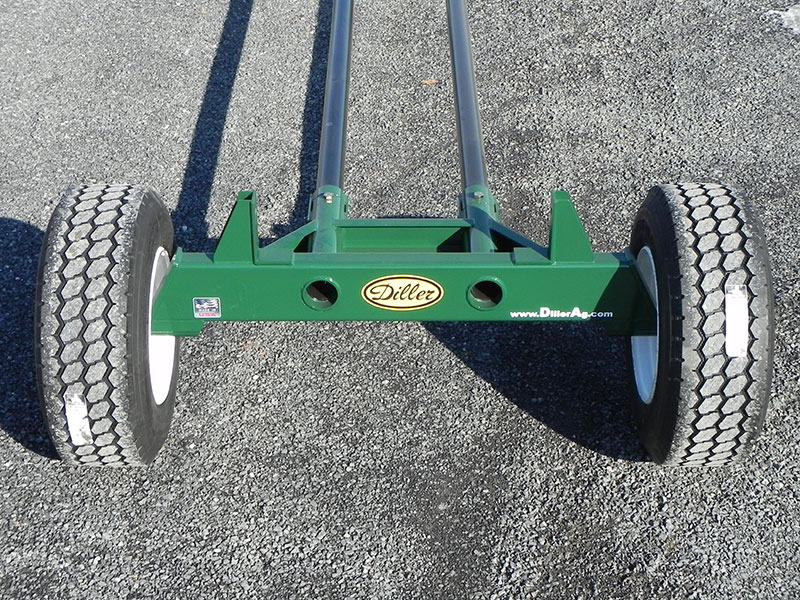

  • Double Coupling Pole Design for Greater Stability and Truer Tracking

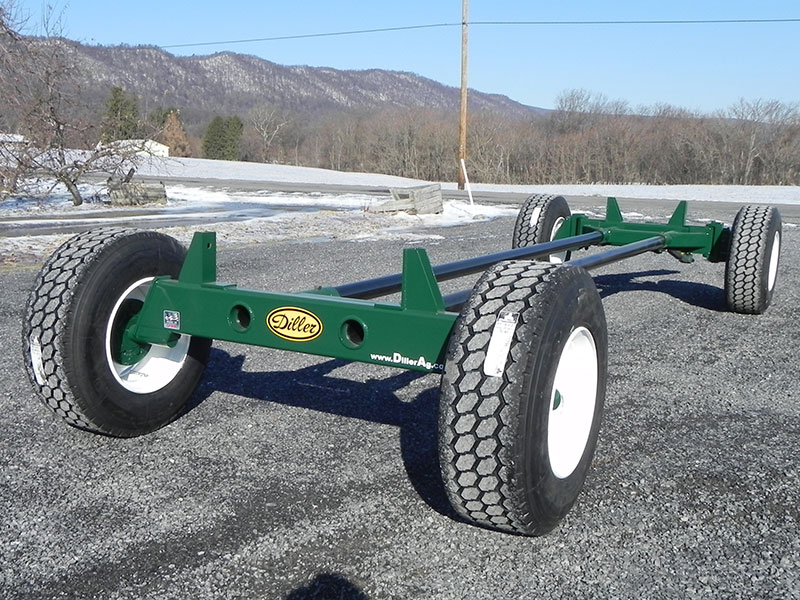

  • Infinitely Adjustable Wheelbase - Available in 12', 14', 16', 18' and 20' Lengths
  • Easy Hitch - Pull Out Tongue

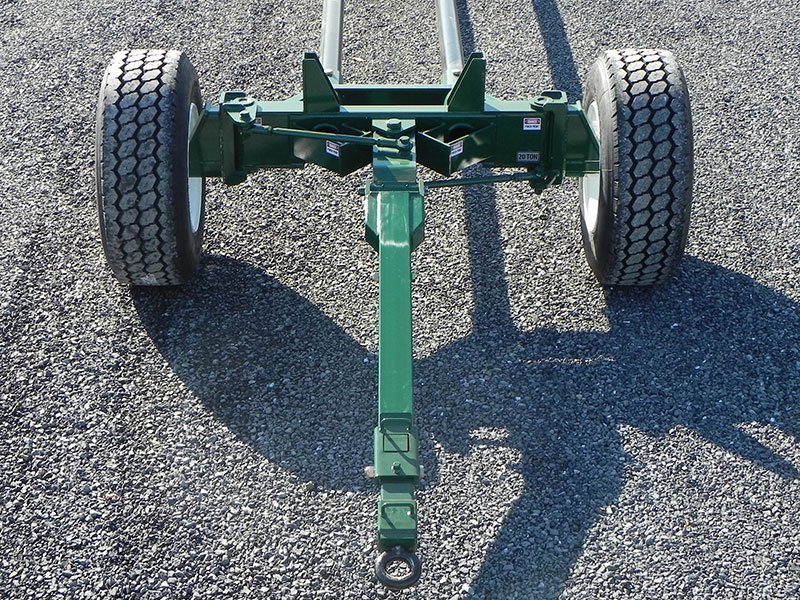

  • Automotive Type Steering - Teflon Lined Ball Joints

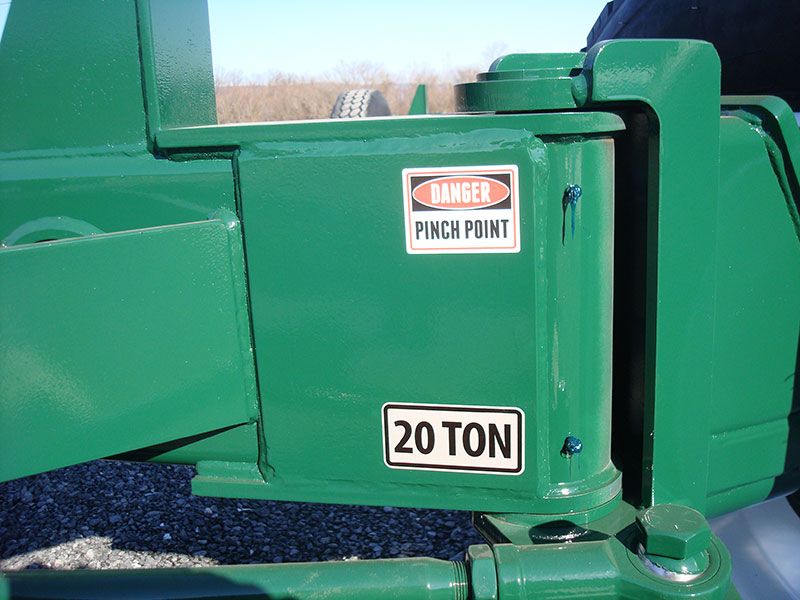

  • Reinforced Spindle Design
  • Tapered Roller Bearings
  • Easy Greasable Hubs
  • Greasable Bushings at all Wear Points
  • Standard Rear Hitch
  • Epoxy Primer & 2-Component Polyurethane Paint

Options

  • Wide Track (increases track width by 8")
  • Compression Spring-Assist Tongue
  • Multiple Tire & Wheel Upgrades
  • Rocking Bolsters

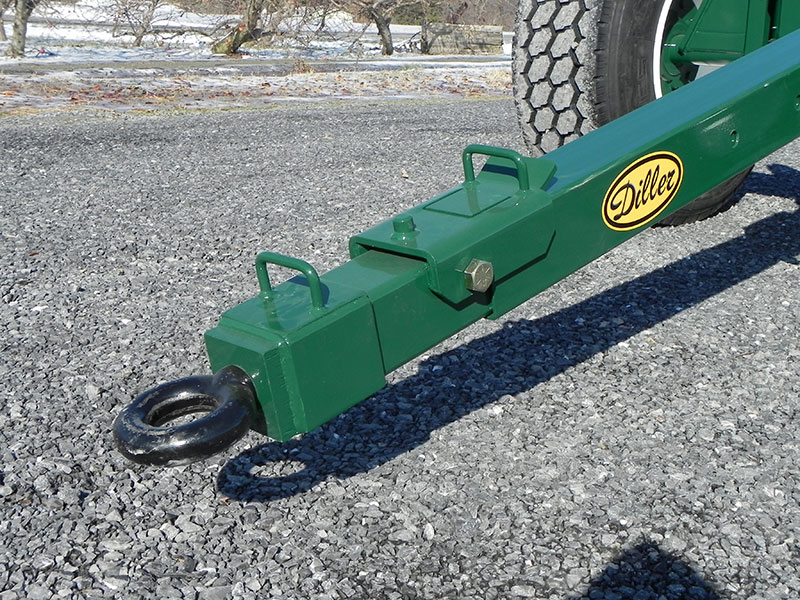

  • Pintle Hitch
  • Electric Brakes

Specifications

Single Rear Axle
Model Capacity Track Width Front Spindle Rear Spindle Axles Tires Wheels
CS-08 16,000# 77" 1-3/4" 1-3/4" 3x6x3/16TS 11L-15LRD 15x8 6-6
CS-10 20,000# 79" 2-1/8" 2-1/8" 3x6x1/4TS 11L-15LRD 15x8 6-6
CS-12 24,000# 77" 2-1/4" 2-1/4" 3x8x1/4TS 12.5L-15LRF 15x10 8-8
CS-14 28,000# 77" 2-3/4" 2-3/4" 3x8x1/4TS 14L-16.1LRF 16.1x11 8-8
16 and 20 ton models are built to custom specifications based on the intended application

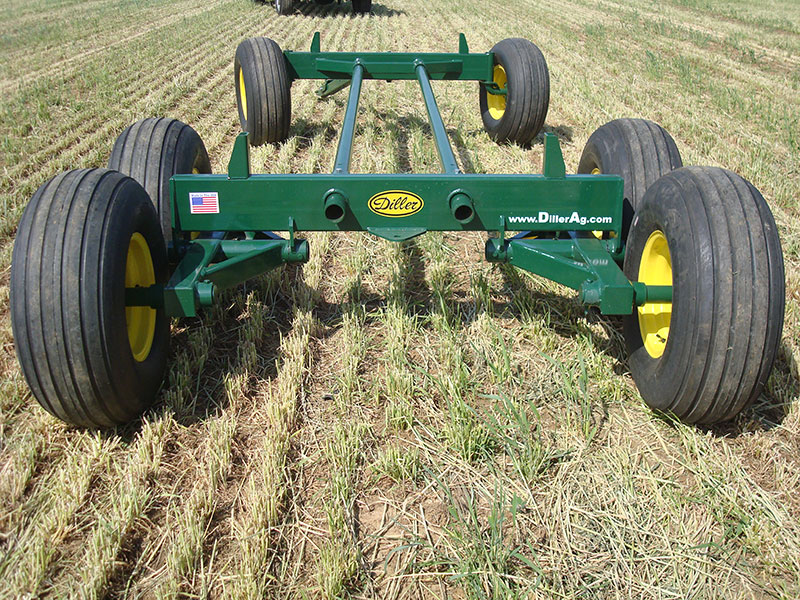

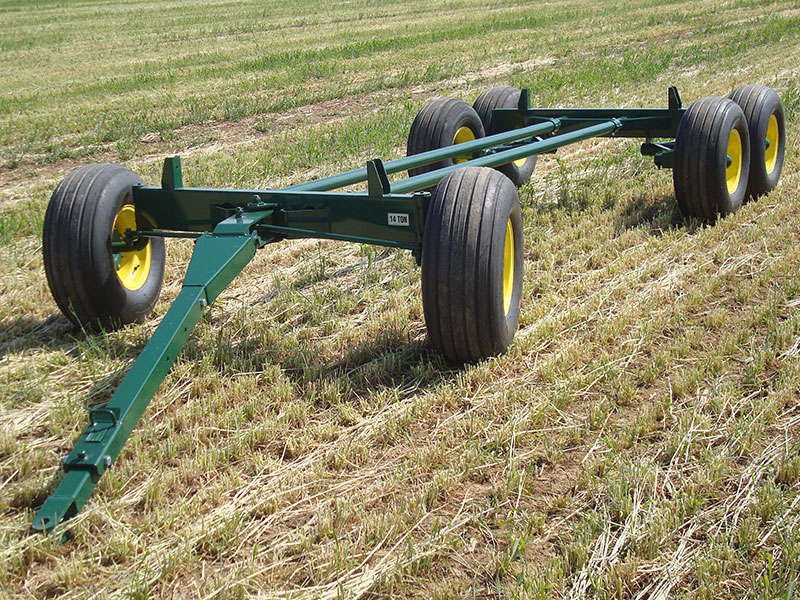

Tandem Rear Axle
Model Capacity Track Width Front Spindle Rear Spindle Axles Tires Wheels
CT-12 24,000# 79" 2-1/8" 2-1/4" 3x6x1/4TS 11L-15LRD 15x8 6-6
CT-14 28,000# 77" 2-1/4" 2-1/2" 3x8x1/4TS 12.5L-15LRF 15x10 8-8
16 and 20 ton models are built to custom specifications based on the intended application
Tire & Wheel Options
Tire Size Description Capacity (LBS/Tire) Rim Size
11L x 15 D Range / 8 Ply 2,540 15 x 8 x 6
11L x 15 E Range / 10 Ply 2,910 15 x 8 x 6
11L x 15 F Range / 12 Ply 3,200 15 x 8 x 6/8
12.5L x 15 E Range / 10 Ply 3,420 15 x 10 x 6/8
12.5L x 15 F Range / 12 Ply 3,860 15 x 10 x 6/8
14L x 16.1 D Range / 8 Ply 3,860 W11C x 16.1 x 8
14L x 16.1 F Range / 12 Ply 4,680 W11C x 16.1 x 8
16.5L x 16.1 E Range / 10 Ply 5,200 W14C x 16.1 x 8
16.5L x 16.1 G Range / 14 Ply 6,400 W14C x 16.1 x 8/10
385/65 x R22.5 Truck Tire New Recaps 9,361 22.5 x 11.25 x 8/10
