Standard Features

• 100% Steel Frame Construction
• Frame Rails - 6" or 8" Structural Channel
• Crossmembers - 3" Structural Channel

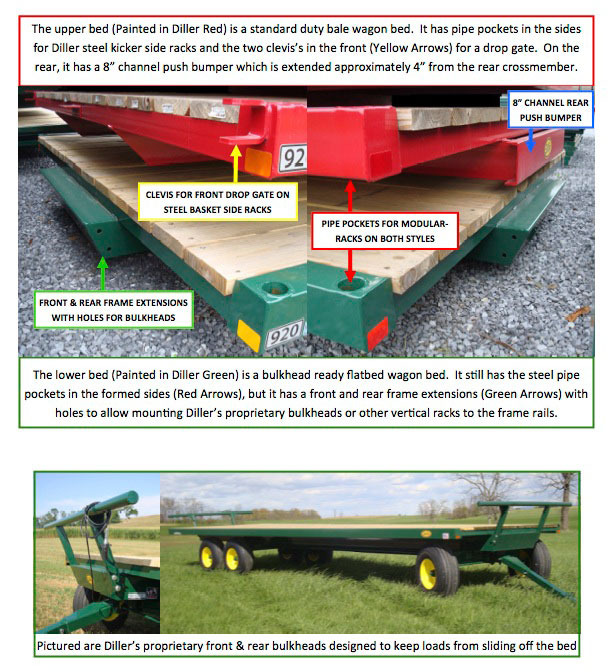

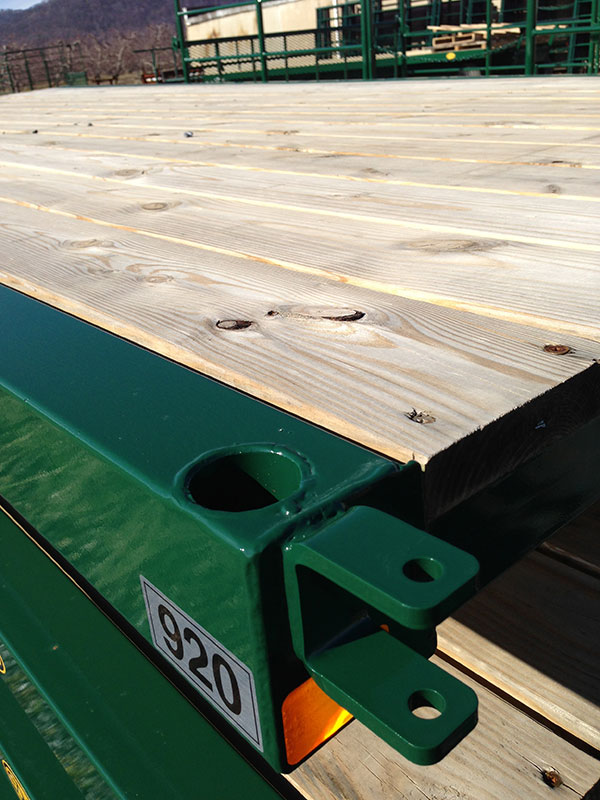

• Side Rails - 5" High, 12 Gauge Steel Formed Sides with 2" ID Pipe Pockets for Side Racks (Sold Separately)
• Epoxy Primer & 2-Component Polyurethane Paint
• Pressure Treated 2"x8" Decking

Options

• Front and Rear Bulkheads & Customizable Racks (Bolt On)
• Custom Perimeter Pipe Racks (Drop in)
• 4# Steel Grate Decking
• Oak Decking
• LED Ag Light Kit w/7 Pin Plug (bulkhead mounted or recessed into rear bumper)
• 4" Channel Crossmember Upgrade

Specifications

Model	Width	Length	Capacity	Frame	Crossmembers
FB-816	100"	16'	14,000#	6"C x 8.2#	5
FB-818	100"	18'	16,000#	6"C x 8.2#	6
FB-820	100"	20'	18,000#	6"C x 8.2#	6
FB-918	108"	18'	18,000#	6"C x 8.2#	6
FB-920	108"	20'	18,000#	6"C x 8.2#	6
FB-924	108"	24'	20,000#	8"C x 11.5#	7
